Design Features

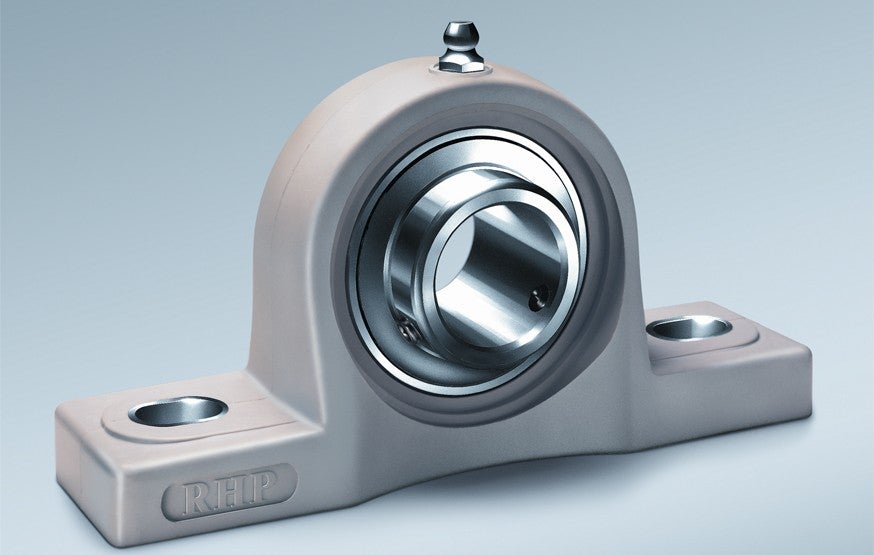

- Available in stainless steel and thermoplastic housing material options for pillow block, four-bolt flange and two-bolt flange models
- Stainless steel housings are cast from SUS 316 grade for superior corrosion resistance
- Thermoplastic housings are cast from PBT polyester resin with 20% glass fiber for optimal thermal and dimensional stability
- Equipped with set screw locking SUS 440C equivalent stainless steel ball bearing inserts engineered with high-performance slinger seals
- Bearing inserts are factory-filled with FDA/USDA H1 food-grade grease
- Units are equipped to facilitate grease re-lubrication
- Radial internal clearance C3 is standard
- For shafts ranging from 12 to 65 mm, 1/2 to 2-1/2”
Operating Benefits
- Resistance to corrosion and rust even under constant exposure to water and chemical washdowns
- Prevention of contamination and bacterial growth with easy-to-clean smooth surfaces
- Extreme temperature tolerance in both hot and cold zones
Fields of Application including
- Chemical plants
- Food and beverage processing
